| X E N O N S |
| Models |
X4E-640/740 |

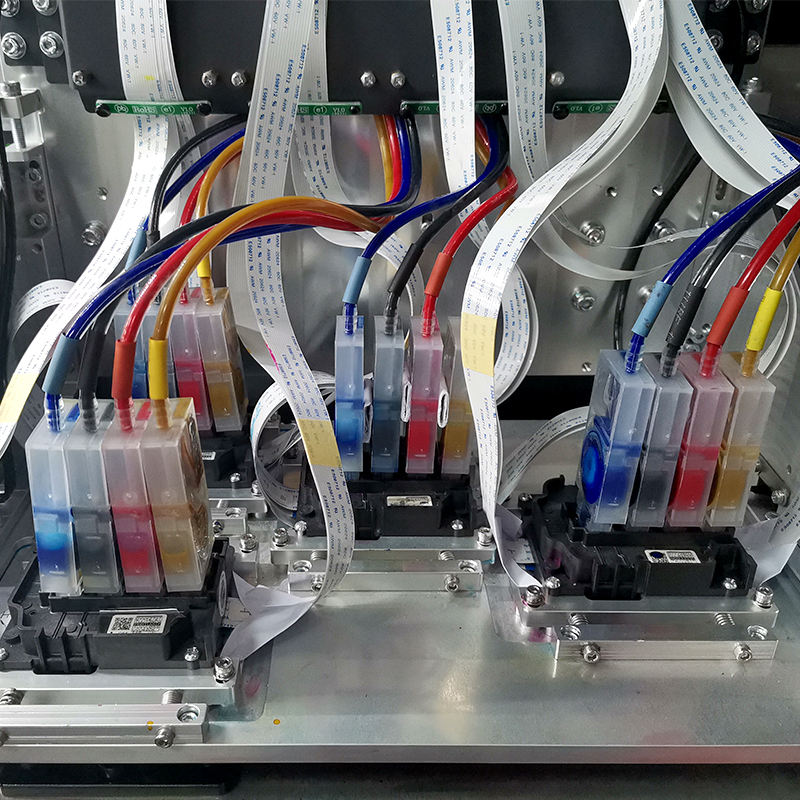

| Print Head |
EPSON i3200, DX5 |
| Number of print heads |
2/3/4 |
| Fabric |
Width |
1600/1800 mm (63/71 Inch) |
| Thickness |
Maximum 3.00 mm |
| Roll Outer Diameter |
Maximum 300 mm (12 in), 50.8(2 inch) |
| Roll Weight |
Maximum 40 Kg |
| Core Diameter |
76.2mm (3 in)/50.8mm (2 in) |
| Types |
Fabric (Solvent Based), SAV, PVC Banner, Backlit Film, Window Film |
| Printing Width |
Maximum 1900mm (75 in) |

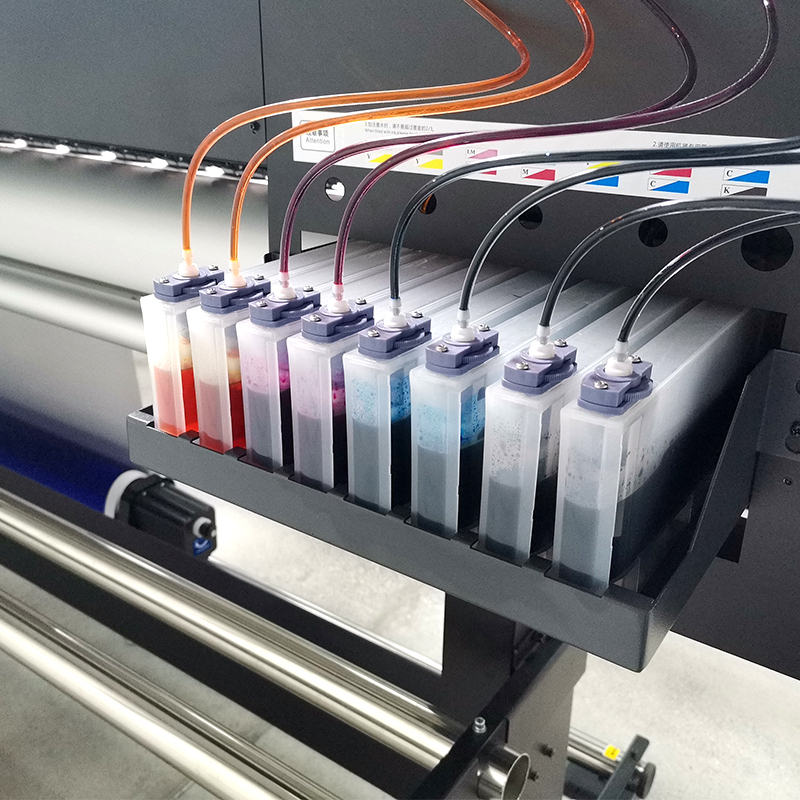

| Inks |
Types |
Eco solvent/Dye Sublimation/Water Base |
| No. of Color |
4 Colors (CMYK) |
| Ink Capacity |
3.5L (± 100 ml) |
| Printing Resolution (dots per inch) |
Maximum 3200 dpi |
| Media take-up system |
Auto-Feeding system and take-up system |
| Interface |
High Speed USB-3.0/ Lan port |
| Power-saving feature |
Automatic sleep feature |
| Power supply |
Voltage and frequency |
| AC 220 V ± 10%, 50/60 Hz |
| Required power capacity |
| Maximum 35A (Printer 15A, Heater 25A) |
| Printer Dimensions |
Machine(L*W*H): 3732*1210*1612mm |
Package(L*W*H): 3900*750*850mm（Printer）
2520*1150*1100mm（Feeder） |
| RIP software |
MT/PP/ONYX |
| Weight (with stand) |
G.W:605KG N.W:455KG |
| Environmental |
Power ON |
Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 35 to 80% (no conde nsation) |
| Power OFF |
Temperature: 41° to 104°F (5° to 40°C) / Humidity:
20 to 80% (no condensation) |
| Maximum Speed |
EPSON i3200 (2H) |
EPSON i3200 (3H) |
EPSON i3200 (4H) |
EPSON DX5 (4H) |
| Draft (2pass) |
96 sqm/h |
123 sqm/h |
159 sqm/h |
130 sqm/h |
| Production(3pass) |
60 sqm/h |
82 sqm/h |
106 sqm/h |
88 sqm/h |
| Quality(4pass) |
47 sqm/h |
61.5 sqm/h |
88 sqm/h |
68 sqm/h |
| Hi-Quality(6pass) |
30 sqm/h |
41 sqm/h |
62 sqm/h |
56 sqm/h |
| PrintLinks System Requirements |
| Operating system |
Windows® 7/10 (64-bit) |
| CPU |
Intel® Core™ 8, 4.0 GHz or faster recommended |
| RAM |
8 GB or more recommended |
| Video card and monitor |
A resolution of 1,280 x 1,024 or more recommended |
| Free hard-disk space |
80 GB or more recommended |
| Hard-disk file system |
NTFS format |
| Optical drive |
DVD-ROM drive |
| Other requirements |
Ethernet or USB port |
| Internet connection and web browser to software Registration |
Please note: Considering that you will be using software such as Illustrator,
we recommend that you use as high performance computer as possible to reduce RIP processing time.
We also recommend using a hard disk that has large enough capacity,
as print files are often tens of GB in size (or larger) when data is high resolution.
