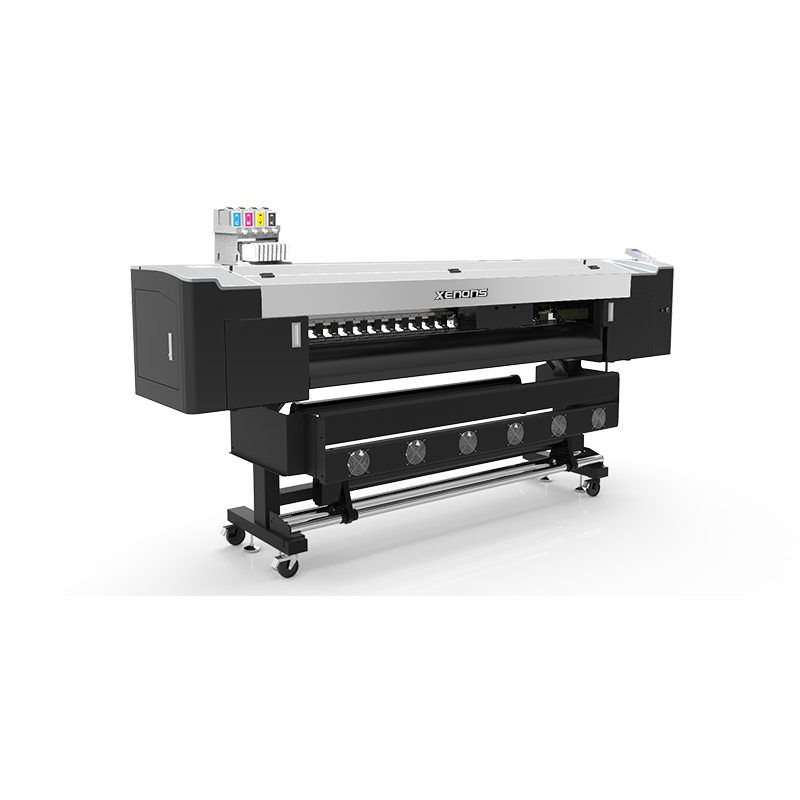

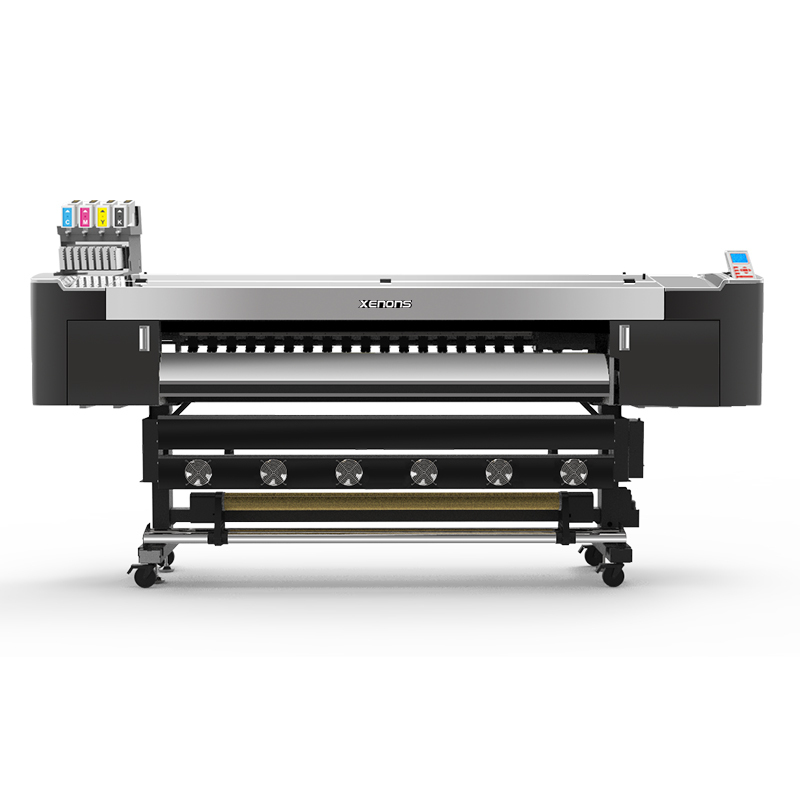

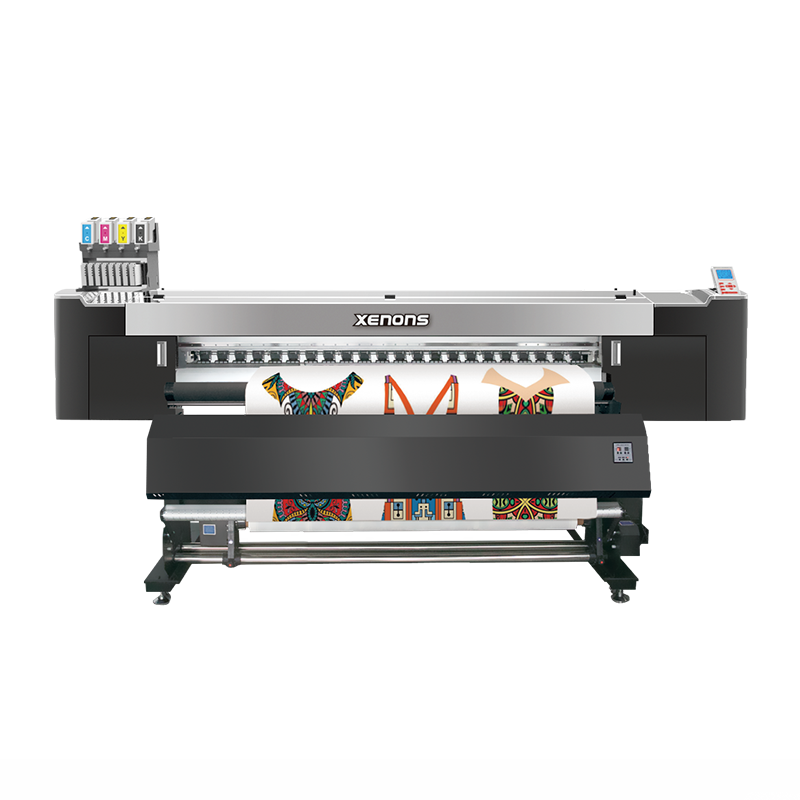

| MODEL | X3S-7403D | ||
| Printing Head | EPS 3200 | ||
| Acceptable media | Width | 1920mm media width | |
| Weight | Roll media: Maximum 88 lb. (40 kg) | ||
| Roll outer diameter | Maximum 8.3 in. (210 mm) | ||
| Core diameter | 3 in (76.2mm) 2 in (50.8mm) |
||
| Media take-up system | Maximum 8.3 in (210 mm) outer diameter / Maximum 88 lb. (40 kg) weight | ||
| Printing width | Maximum 74 in (1880 mm) | ||
| Maximum Printing Speed | 322 sqft./hr. in CMYK mode | ||
| Ink bottles | Type | Dye Sublimation/Pigment inks | |
| Capacity | 1500 ml (± 100 ml) | ||
| Colors | 4 colors (Cyan, Magenta, Yellow, Black, ) | ||
| Configuration | CMYK | ||
| Ink curing unit | Extend infared heating and cooling system | ||
| Printing resolutions | 360x600 dpi, 360x1200 dpi, 720x1200 dpi, 720x1800 dpi | ||
| Interface | USB 3.0 | ||
| Power-saving feature | Automatic sleep feature | ||
| Power supply | Voltage and frequency | AC 220 V ± 10%, 50/60 Hz | |
| Required power capacity | Maximum 20 A | ||
| Power Consumption | During operation | Maximum 3000W | |
| Standby mode | Approx. 200 W | ||
| Dimensions (with stand) |
3260mmx930mmx1800mm | ||
| Weight (with stand) | 869 lb. (395 kg) | ||
| Environment | Power on | Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 35 to 80% (no conde nsation) | |
| Power off | Temperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation) | ||
